Choosing a digital lock for your main door is not only about selecting fingerprint access, PIN entry, RFID cards, mobile connectivity or a premium-looking design.

The lock must also physically fit your door.

A digital lock that works perfectly on a solid wooden door may not fit a narrow aluminium profile. Similarly, a standard mortise lock designed for a swing door cannot usually be installed on a frameless glass door or sliding door.

Before purchasing a digital lock, you should check:

• Door material
• Door thickness
• Door opening direction
• Available space on the door
• Backset requirement
• Door-frame clearance
• Existing lock cut-outs
• Single- or double-door configuration

Checking these details before purchasing can prevent unnecessary door cutting, installation delays, extra modification costs, damage to the door finish and lock replacement problems.

This complete door compatibility guide will help you understand which type of digital lock may be suitable for your door and when a professional inspection is required.

How Do I Know Whether a Digital Lock Will Fit My Door?

A digital lock will fit your door only when its installation requirements match the door material, thickness, opening direction, backset, frame clearance and existing cut-outs. You should also check whether the door is wooden, aluminium, glass, steel, UPVC, sliding, single or double before selecting a lock.

Digital Lock Compatibility Checklist

Before buying a digital lock for your main door, check the following details.

1. Door Material

Identify whether the door is made of:

• Solid wood
• Hollow wood
• Aluminium
• Glass
• Steel or metal
• UPVC
• Wood with metal cladding
• Another composite material

Different door materials require different lock bodies, fittings and installation methods.

2. Door Thickness

Every digital lock supports a particular door-thickness range. Measure the complete thickness of the door, including laminate, veneer, decorative panels or metal cladding.

3. Available Door Width

There must be sufficient flat space for the front and rear lock panels. Decorative mouldings, grooves or glass panels can reduce the usable installation area.

4. Door-Frame Clearance

The lock bolt must align correctly with the strike plate on the frame. A narrow, uneven or recessed frame may require modification.

5. Backset

The backset is the distance between the edge of the door and the centre of the lock handle, spindle or key cylinder. It determines where the lock body will sit inside the door.

6. Existing Lock Dimensions

Measure the length and width of the existing lock body, handle plate and visible cut-outs. A replacement digital lock should ideally cover the old holes.

7. Left- or Right-Opening Direction

Some locks can be adjusted for either direction, while other models must be configured according to the door handing.

8. Inward- or Outward-Opening Door

The opening direction can affect the lock handle, push-pull operation and strike plate installation.

9. Single or Double Door

A single door locks against a fixed frame. A double door may lock against the second door panel, requiring additional alignment and reinforcement.

10. Main Door or Internal Door

Main doors normally need stronger mortise or deadbolt systems, while internal doors may use simpler rim locks or lever-handle locks.

11. Electrical Requirements

Most residential digital locks are battery-operated. However, some access-control systems, magnetic locks and video-door solutions may require electrical wiring.

12. Wi-Fi or Mobile Connectivity

Smart locks with remote unlocking, app control or video features may need stable Wi-Fi, a compatible mobile application or an additional gateway.

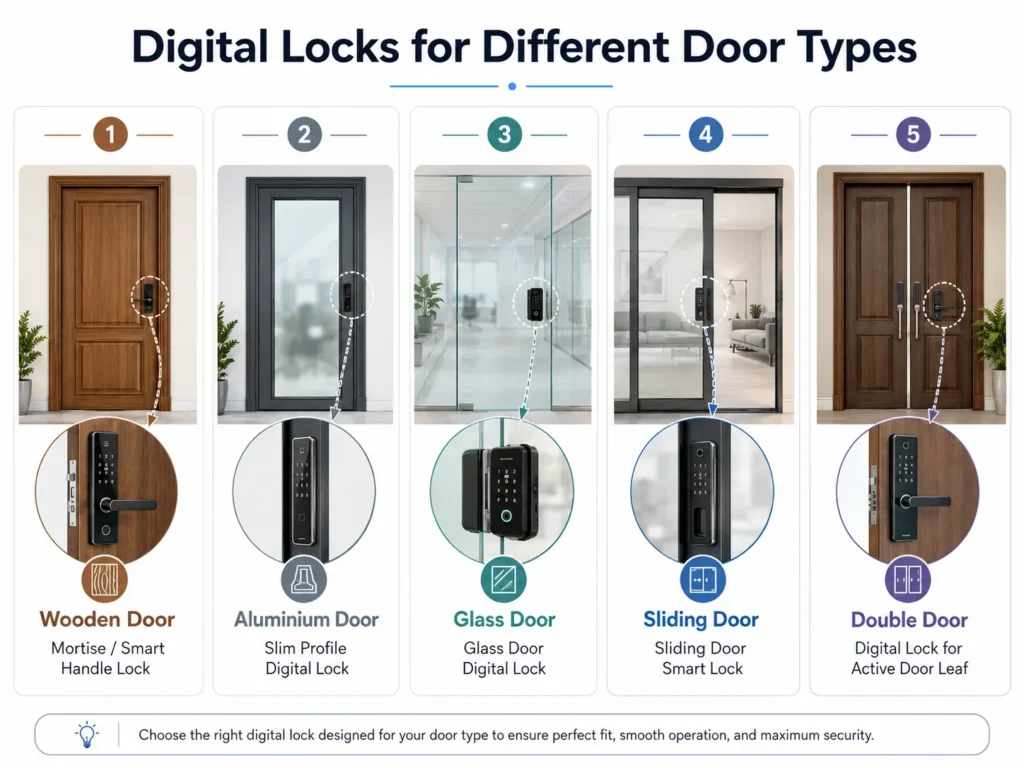

Which Digital Lock Is Suitable for Different Door Materials?

Digital Lock for a Wooden Door

Wooden doors generally offer the widest range of digital lock compatibility.

Solid wooden main doors can commonly support:

• Mortise digital locks
• Push-pull digital locks
• Lever-handle digital locks
• Deadbolt digital locks
• Rim digital locks

However, the door’s thickness and internal construction must still be checked.

A hollow-core wooden door may not provide sufficient support for a heavy mortise or push-pull lock. Decorative grooves, mouldings or uneven surfaces can also prevent the lock panel from sitting flat.

When replacing an existing mechanical lock, the old mortise cavity and handle holes must be compared with the new digital lock’s installation template.

A digital lock for a wooden door is commonly suitable when:

• The door has sufficient thickness
• The internal wood is strong
• There is enough flat installation space
• The frame is aligned
• The existing cut-outs can be covered or modified safely

Smart Lock for an Aluminium Door

Aluminium doors usually have narrower profiles than wooden doors. Therefore, a standard digital mortise lock may not fit.

A slim-profile smart lock designed for aluminium doors may be required.

One of the most important measurements is the stile width. The stile is the vertical aluminium section at the side of the door where the lock is installed. If this section is too narrow, the lock body or front panel may overlap the glass or extend beyond the profile.

Before choosing a smart lock for an aluminium door, check:

• Width of the aluminium stile
• Depth of the aluminium profile
• Internal channels or reinforcement
• Glass position
• Frame clearance
• Existing lock mechanism
• Space for the strike plate

Drilling and cutting aluminium should be carried out carefully. Incorrect cutting can weaken the profile or damage the finish.

A site inspection is strongly recommended for aluminium doors, especially when the door has a narrow profile or glass panel.

Glass Door Digital Lock

Glass doors require digital locks specifically designed for glass applications.

A standard mortise lock should not be installed directly into a glass panel. Frameless glass doors commonly require clamp-type digital locks that fit around the glass without conventional mortising.

Before selecting a glass door digital lock, check:

• Glass thickness
• Single- or double-door configuration
• Frameless or aluminium-framed design
• Position of patch fittings
• Floor spring location
• Existing glass handle
• Clearance between the glass and frame
• Locking point on the opposite panel or wall

For a double glass door, the locking arrangement may differ because one glass panel may need to lock against the other.

Professional inspection is strongly recommended before confirming a digital lock for glass doors in India.

Digital Lock for a Sliding Door

Sliding doors need a different locking mechanism from swing doors.

A standard swing-door mortise lock usually uses a latch or deadbolt that enters the frame from the side. A sliding door may require a hook bolt or a lock specifically designed to secure the moving panel to the frame.

Before selecting a digital lock for a sliding door, check:

• Wooden or aluminium construction
• Sliding direction
• Available profile width
• Meeting point between the door and frame
• Space for a hook-bolt mechanism
• Door overlap
• Pocket-door clearance
• Existing handle and cut-outs

Wooden sliding doors and aluminium sliding doors may require different lock types. Pocket sliding doors can be especially difficult because the door moves inside the wall, leaving limited space for a lock body or handle.

Digital Lock for a Metal or Steel Door

Digital locks can be installed on many metal and steel doors, but the internal structure must be inspected.

Steel doors may contain:

• Internal reinforcement
• Welded lock boxes
• Hollow sections
• Insulation
• Fire-resistant material
• Pre-cut lock openings

An existing welded lock box may limit the size of the new mortise. Cutting and drilling should be done using suitable tools to prevent damage to the door surface.

The lock bolt must also align with the metal frame and strike plate.

Fire-rated doors should not be modified without checking the door manufacturer’s instructions and required approvals. Unauthorised modification can affect the door’s certification and performance.

Digital Lock for a UPVC Door

UPVC doors normally have narrow profiles and internal steel reinforcement. Many also use multipoint locking mechanisms.

Replacing a multipoint system with a standard digital lock can be complicated. A slim smart lock designed for UPVC or narrow-profile doors may be required.

Before confirming the lock, inspect:

• UPVC profile width
• Internal metal reinforcement
• Existing multipoint mechanism
• Handle position
• Frame clearance
• Locking points
• Door alignment

A site inspection is recommended before choosing a digital lock for a UPVC door.

Why Door Thickness Matters for a Digital Lock

Every digital lock supports a specific door-thickness range.

The lock normally has an external panel and an internal panel connected through the door using screws, a spindle and electronic cables.

If the door is too thin:

• The lock may not tighten securely
• The panels may move during operation
• Additional spacer plates may be required
• Heavy lock panels may not receive sufficient support

If the door is too thick:

• The spindle may not reach
• Connecting screws may be too short
• Electronic cables may not connect properly
• The lock body may require extended accessories

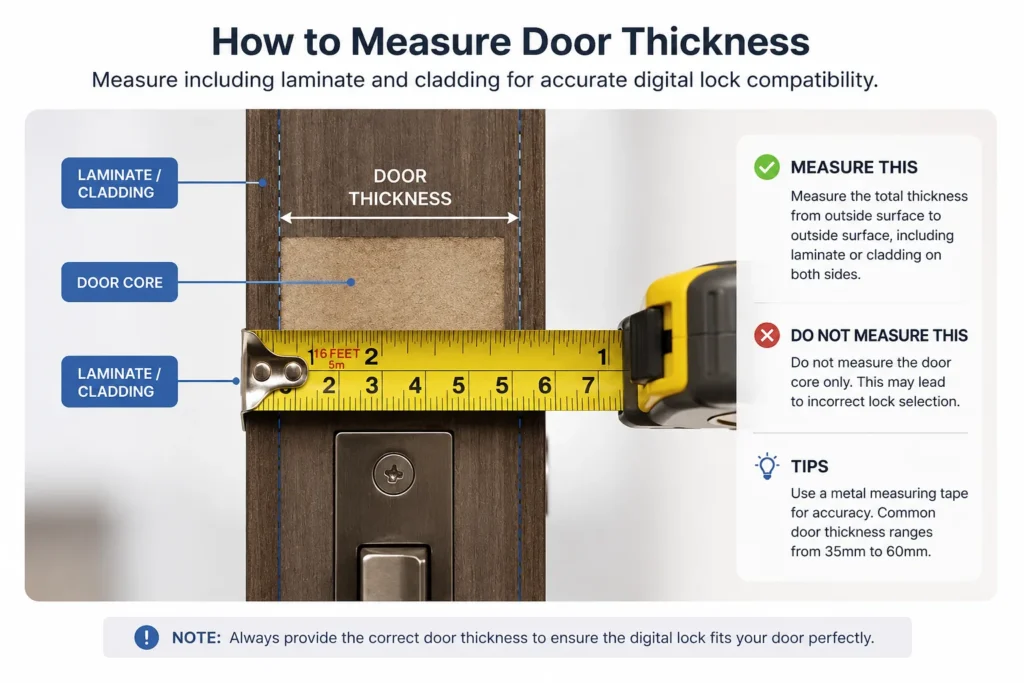

How to Measure Door Thickness

Open the door and place a measuring tape across the side edge.

Measure from the complete outer surface on one side to the complete outer surface on the other side.

Do not measure only the visible wooden core.

Include:

• Laminate
• Veneer
• Metal sheet
• Decorative cladding
• Additional panels
• Surface coverings

Send the measurement in millimetres for better accuracy.

What Is Backset in a Digital Lock?

Backset is the distance from the edge of the door to the centre of the handle spindle, key cylinder or lock operating point.

It determines how deeply the lock body sits inside the door.

Backset matters because it affects:

• Handle position
• Clearance from the door edge
• Compatibility with existing holes
• Position of the mortise inside the door
• Alignment with the frame
• Strike-plate position

How to Measure Backset

Close the door and locate the centre of the existing handle spindle or key cylinder.

Measure horizontally from the edge of the door to that centre point.

When replacing an existing lock, also measure the mortise body and share clear side-edge photos.

Left-Opening and Right-Opening Doors

Door handing refers to the side on which the hinges are positioned and the direction in which the door opens.

Stand on the outside or entry side of the door.

• Hinges on the left generally indicate a left-hinged door.
• Hinges on the right generally indicate a right-hinged door.

You should also mention whether the door opens inward or outward.

For example, a main door with hinges on the right that moves inside the home is a right-hinged, inward-opening door.

Some digital locks are reversible. Others require the handle, latch or push-pull direction to be configured during installation. Sharing a short video of the door opening and closing can help avoid confusion.

Digital Lock for a Single Door vs Double Door

Digital Lock for a Single Door

A digital lock for a single door is generally easier to plan because the lock bolt enters a fixed frame.

Compatibility still depends on:

• Door thickness
• Door material
• Backset
• Frame clearance
• Existing cut-outs
• Opening direction

Digital Lock for a Double Door

A double door has two door panels or leaves. One is normally the active door, while the second remains fixed using flush bolts or another securing system.

The digital lock may need to lock into the second door panel instead of a permanent frame.

Important considerations include:

• Movement between both door panels
• Strength of the inactive panel
• Strike-plate positioning
• Flush-bolt condition
• Door alignment
• Gap between the panels
• Reinforcement requirements

If the second panel moves, the lock bolt may not align correctly. A site inspection is recommended before selecting a digital lock for a double door.

Can the Existing Lock Cut-Out Be Reused?

The existing lock cut-out plays an important role when replacing a mechanical or older digital lock.

Check:

• Mortise cavity size
• Handle holes
• Key-cylinder holes
• Screw holes
• Existing decorative plate
• Old lock footprint
• Previous door repairs
• Damaged or enlarged openings

The new digital lock should ideally cover the old holes. When it does not, the door may require:

• A cover plate
• A customised escutcheon
• Wood filling
• Polishing or laminate repair
• Metal fabrication
• Additional reinforcement

In extreme cases, replacing or professionally rebuilding part of the door may be more practical than making multiple modifications.

Do not remove the existing lock before checking the dimensions of the replacement digital lock.

Door Frame and Strike-Plate Compatibility

A digital lock is not compatible only because its panels fit on the door. Its latch or deadbolt must also align correctly with the strike plate on the frame.

Check:

• Frame material
• Frame depth
• Gap between the door and frame
• Existing strike plate
• Double-rebate design
• Metal frame construction
• Weather seals
• Door stoppers
• Door sagging
• Uneven closing

Even a correctly selected digital lock can malfunction when the door is misaligned.

Common symptoms include:

• Door not locking smoothly
• Motor struggling to operate
• Bolt hitting the frame
• Automatic locking failing
• Door needing to be pushed or pulled during locking

Door alignment should be corrected before or during installation.

Digital Lock Compatibility Table

Door Type	Common Suitable Lock Type	Important Checks	Inspection Recommended?
Solid wooden door	Mortise, push-pull, lever, deadbolt or rim lock	Thickness, backset, cut-outs and frame alignment	Recommended for replacement locks
Hollow wooden door	Lightweight rim, deadbolt or selected mortise lock	Internal reinforcement and door strength	Yes
Aluminium door	Slim-profile smart lock	Stile width, profile depth and internal channels	Yes
Frameless glass door	Clamp-type glass door digital lock	Glass thickness, patch fittings and locking point	Strongly recommended
Framed glass door	Slim lock depending on the frame profile	Frame width, glass position and clearance	Yes
Wooden sliding door	Hook-bolt or sliding-door-compatible lock	Door overlap, pocket clearance and frame	Yes
Aluminium sliding door	Slim hook-bolt digital lock	Aluminium profile, frame and meeting point	Strongly recommended
Steel door	Selected mortise, lever or deadbolt lock	Reinforcement, welded box and frame alignment	Yes
UPVC door	Slim-profile or UPVC-compatible smart lock	Multipoint system and internal reinforcement	Strongly recommended
Single door	Mortise, deadbolt, rim or push-pull lock	Frame, thickness and opening direction	Depends on the door
Double door	Selected mortise or suitable digital lock arrangement	Inactive leaf, alignment and strike support	Strongly recommended

This table provides general guidance. Final compatibility depends on the specific digital lock model and actual door measurements.

Send These Three Door Photos for a Compatibility Check

Before purchasing a lock, send Lock Macha these three clear photos:

1. Front Photo of the Complete Door

Take the photo from a distance so the full door, frame, hinges and existing handle are visible.

2. Side-Edge Photo

Open the door and photograph the side edge. The image should clearly show the existing mortise, latch, bolt and door thickness.

3. Close-Up of the Existing Lock and Frame

Take a close photo showing the handle, lock plate, key cylinder, door edge and strike plate.

For a more accurate compatibility check, also send:

• Door thickness in millimetres
• Door material
• Inside and outside photos
• Opening direction
• Installation city
• Short door-opening video
• Existing lock brand or model, if known
• Preferred features such as fingerprint, PIN, RFID, mobile app, camera or remote access

When Is a Site Inspection Required?

A site inspection is recommended when:

• The door is aluminium, glass, UPVC, steel or sliding
• The door has a narrow or unusual profile
• It is a double door
• The existing cut-outs are large
• A push-pull lock is required
• The frame is narrow, recessed or uneven
• The door has decorative moulding
• The door is fire-rated
• Electrical wiring is required
• The lock must connect to access control
• Measurements are unclear
• Multiple doors are involved
• The property is under construction
• The door is expensive or customised

A site inspection helps identify installation limitations before the door is modified.

Common Digital Lock Compatibility Mistakes

Avoid these common mistakes:

• Buying a lock based only on appearance
• Choosing only according to price
• Assuming every digital lock fits every door
• Not checking door thickness
• Ignoring backset
• Not checking the opening direction
• Removing the old lock before selecting the replacement
• Ignoring the frame and strike plate
• Selecting a wide lock for a narrow aluminium profile
• Installing a standard mortise lock on glass
• Using an inexperienced installer
• Ignoring after-sales and installation support
• Not checking whether old holes will remain visible
• Buying before sharing measurements and photos

How Lock Macha Helps You Select the Right Digital Lock

Lock Macha helps customers understand whether a digital lock may be suitable for their door before installation.

Our compatibility support can include:

• Reviewing door photos
• Checking door measurements
• Identifying the door material
• Understanding the opening direction
• Checking the available installation area
• Reviewing existing lock cut-outs
• Suggesting suitable digital lock categories
• Advising when a site inspection is needed
• Coordinating professional installation support
• Providing after-sales guidance

We provide compatibility guidance for wooden, aluminium, glass, steel, UPVC, sliding, single and double doors.

Final model selection should always be confirmed after reviewing the actual door and the installation requirements of the selected lock.

Frequently Asked Questions

1. Can a digital lock be installed on any door?

No. Digital lock compatibility depends on the door material, thickness, construction, opening direction, frame and available installation space. Wooden doors generally offer more options, while aluminium, glass, sliding and UPVC doors may need specialised locks. Door photos and measurements should be checked before purchasing.

2. What door thickness is required for a digital lock?

The required thickness varies by lock model. Many digital locks are designed for a specific thickness range and may need different screws, spindles or accessories for thicker doors. Measure the complete door, including laminate, cladding and decorative panels, before confirming the lock.

3. Which digital lock is best for a wooden main door?

The suitable digital lock for a wooden main door depends on the door thickness, strength, backset and existing cut-outs. Solid wooden doors can commonly support mortise, lever-handle, push-pull, deadbolt and rim locks. The final model should be selected after checking measurements.

4. Can a digital lock be installed on an aluminium door?

Yes, but the aluminium profile must have sufficient width and depth. A standard mortise lock may be too wide, so a slim-profile smart lock may be necessary. The stile width, internal reinforcement, glass position and frame clearance should be inspected before installation.

5. Can digital locks be installed on glass doors?

Yes, using digital locks specifically designed for glass doors. Frameless glass doors commonly use clamp-type locks. Glass thickness, patch fittings, floor springs and the opposite locking surface must be checked. Standard wooden-door mortise locks should not be installed directly into glass.

6. Is a digital lock suitable for a sliding door?

A digital lock can be installed on many sliding doors, but it should have a sliding-door-compatible mechanism such as a hook bolt. Standard swing-door locks may not work. Compatibility depends on the material, available profile width, door overlap and frame arrangement.

7. Can a new digital lock use the existing lock cut-out?

It may be possible when the new lock dimensions match or cover the existing cut-out. If the openings do not align, a cover plate, wood filling, polishing or fabrication may be required. Do not remove the existing lock until the replacement model has been checked.

8. How do I know whether my door is left-opening or right-opening?

Stand on the outside of the door and look at the hinges. Hinges on the left generally mean a left-hinged door, while hinges on the right indicate a right-hinged door. Also mention whether the door opens inward or outward. A short video is useful for confirmation.

9. Can a digital lock be installed on a double door?

Yes, but double doors need careful inspection. The active door normally locks against the inactive door panel, which must be firmly secured. Movement between the two panels can cause alignment problems. The strike plate and flush bolts may also require reinforcement or adjustment.

10. Is a site inspection necessary before buying a digital lock?

A site inspection may not be required for every standard wooden door. However, it is strongly recommended for aluminium, glass, sliding, steel, UPVC, double, fire-rated or customised doors. Inspection is also useful when the existing cut-outs are large or measurements are unclear.

11. Can a digital lock be installed without damaging the door?

Digital lock installation normally requires drilling and cutting, particularly for mortise models. When the correct lock is selected and installed professionally, modification can be planned carefully. Existing holes, decorative finishes and internal construction should be inspected before work begins.

12. What photos should I send for a compatibility check?

Send a complete front photo of the door, a side-edge photo showing the door thickness and mortise, and a close-up of the existing lock and frame. Also share inside and outside photos, measurements, opening direction, installation city and a short video of the door operating.

Need Help Choosing a Digital Lock for Your Main Door?

The right digital lock should match your preferred access features as well as your door’s physical construction.

Before purchasing, check:

• Door material
• Door thickness
• Door opening direction
• Existing lock size
• Backset
• Frame clearance
• Single- or double-door design
• Installation location

Send us three door photos—front, side and existing lock—to check compatibility.

Also share your door thickness, door material, opening direction, installation city and preferred features such as fingerprint, PIN, RFID, mobile app, camera or remote access.

WhatsApp Enquiry Message

Not sure which digital lock will fit your door? Send Lock Macha three clear door photos and basic measurements. Our team will review the door type, thickness, frame, opening direction and existing lock before recommending a suitable option.

• Best digital door lock in India
• Fingerprint vs face-recognition digital locks
• Digital lock for main door with camera
• Yale digital lock installation guide
• Digital lock price guide
• Digital lock for apartments
• Digital lock for villas
• Professional digital lock installation service

Choose the Right Digital Lock Before Modifying Your Door

Selecting the right digital lock for your main door is not only about choosing fingerprint access, PIN entry, RFID, a mobile app or a premium design. The lock must also match your door’s material, thickness, opening direction, backset, frame and existing lock cut-outs.

Checking compatibility before purchasing can help you avoid installation delays, unnecessary cutting, additional modification costs and damage to your door. This is especially important for aluminium, glass, sliding, steel, UPVC and double doors, where specialised digital lock models or a site inspection may be required.

Not sure which digital lock will fit your door?

Send Lock Macha three clear door photos—front view, side edge and existing lock—to check compatibility.

For a more accurate recommendation, also share:

• Door thickness
• Door material
• Left- or right-opening direction
• Inward- or outward-opening direction
• Installation city
• Preferred features such as fingerprint, PIN, RFID, camera or mobile access

Our team will review your door type, frame, measurements and existing lock arrangement before suggesting a suitable digital lock category and installation approach.

Send your door photos and measurements to Lock Macha today and choose your digital lock with greater clarity and confidence.

Location : 235/E, Bommasandra Industrial Area, Bengaluru, Karnataka 560099

Contact 917996099779
